Inversor solar systema Inteligente 3000H/LS 4000H/LS 5000H

1. Doble MPPT Rastreo, precisión de seguimiento MPPT más del 99,8%
2. Max. La eficiencia del 97,8%, 97,2% Eficiencia europea
3. Interruptor de CC interna para la protección de seguridad adicional
4. El factor de potencia continuamente ajustable
5. 5 a
$0.00
Descripción



  • Double MPPT Tracker, MPPT tracking accuracy more than 99.8%

  • Max. Efficiency 97.8%, European Efficiency 97.2%

  • Internal DC Switch for added safety protection

  • Power factor continuously adjustable

  • Flexible communication connection, support USB, WiFi, Ethernet

  • Support Online Update from USB or Ethernet

  • 5 years standard warranty

  • Comply with European, Asia-Pacific safety regulations

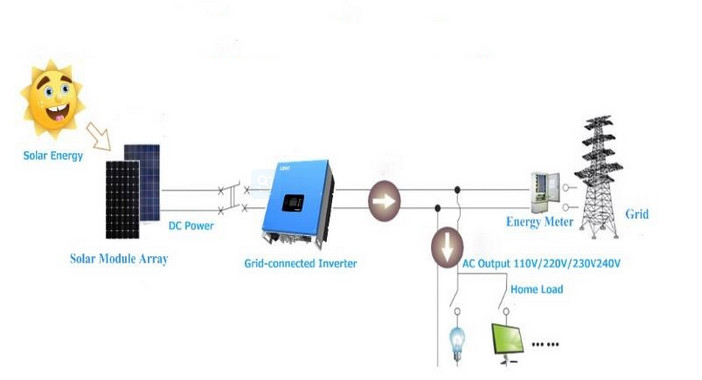

  • Transformerless design and high power density, offer lighter and more convenient installation

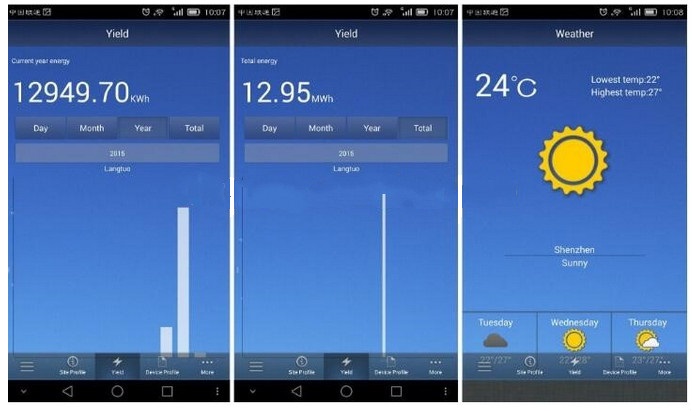

                                                                          IOS & Android APP control System



Technical specitications



DATA SHEET

LS 3000HD

LS 4000HD

LS 5000HD

INPUT DATA (DC)

Max. recommended PV power

3150W

4200W

5250W

Max. PV power of per MPPT

1800W

2400W

3000W

Max. DC voltage

500V

500V

500V

Start voltage

100V

100V

100V

PV voltage range

70-500V

70-500V

70-500V

MPP work voltage range / nominal voltage

100-500V/360V

100-500V/360V

100-500V/360V

Full load dc voltage range

150-450V

200-450V

250-450V

Max. input current

10.0A

10.5A

10.5A

Max. input current per string of tracker A/tracker B

23.0A

23.0A

23.0A

Number of independent MPP trackers/strings per MPP tracker

2/2

2/2

2/2

OUTPUT (AC)

Rated AC output power

3000W

4000W

4960W

Max. AC apparent power

3000VA

4000VA

5000VA

Max. output current

15.0A

20.0A

25.0A

AC nominal voltage; range

220V/230V/240V 180-280Vac

220V/230V/240V 180-280Vac

220V/230V/240V 180-280Vac

AC grid frequency; range

50Hz, 60Hz; ± 5Hz

50Hz, 60Hz; ± 5Hz

50Hz, 60Hz; ± 5Hz

Power factor

0.90 capacitive.•.0.90
inductive

0.90 capacitive-•.0.90
inductive

0.90 capacitive.•.0.90
inductive

THDI

less than3%
(at nominal output power)

less than3%
(at nominal output power)

less than3%
(at nominal output power)

AC grid connection type

Single phase

Single phase

Single phase

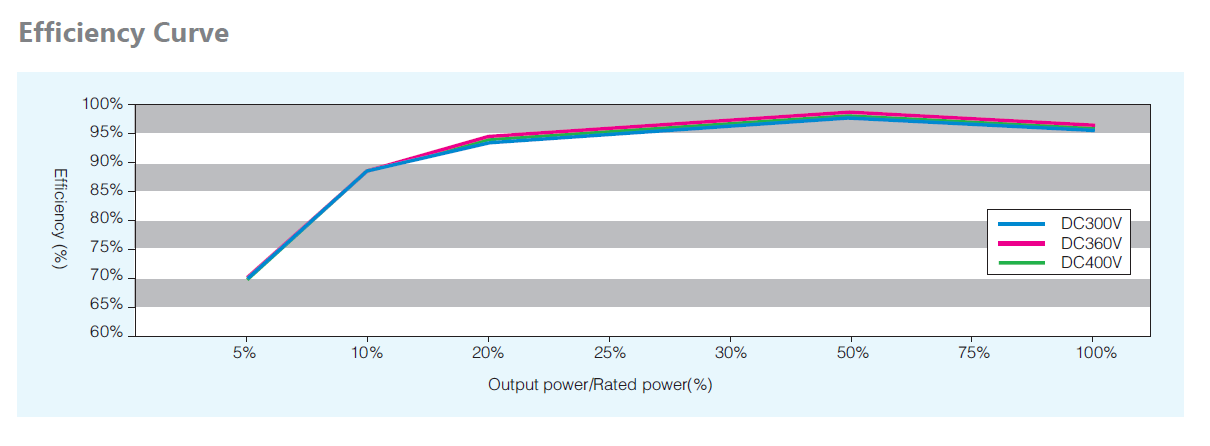

efficiency

Max. efficiency

97.8%

97.8%

97.8%

Euro-eta

97.2%

97.2%

97.2%

MPPT efficiency

99.9%

99.9%

99.9%

Protection DEVICES

DC revers polarity protection

yes

yes

yes

DC switch for each MPPT

opt

opt

opt

Output over current protection

yes

yes

yes

Output overvoltage protection-varistor

yes

yes

yes

Ground fault monitoring

yes

yes

yes

Grid monitoring

yes

yes

yes

Integrated all-pole sensitive
Leakage current monitoring unit

yes

yes

yes

GENERAL DATA

Dimensions (W/H/D)

355*395*170mm

355*395*170mm

355*395*170mm

Weight

17KG

17.5KG

17.5KG

Operating temperature range

-25°C to 60°C

-25°C to 60°C

-25°C to 60°C

Noise emission(typical)

25dB(A)

25dB(A)

25dB(A)

Altitude

2000m without derating

2000m without derating

2000m without derating

Self-Consumption(night)

less than 0.5W

less than 0.5W

less than 0.5W

Topology

Transformerless

Transformerless

Transformerless

Cooling concept

Natural

Natural

Natural

Environmental Protection Rating

IP65

IP65

IP65

Relative Humidity

100%

100%

100%

FEATURES

DC connection

H4/MC4

H4/MC4

H4/MC4

AC connection

Connector

Connector

Connector

Display

LCD. LED

LCD. LED

LCD. LED

Interfaces:USB/Wi-Fi/GPRS/RS485

yes/yes/opt/opt

yes/yes/opt/opt

yes/yes/opt/opt

Warranty: 5 years/ 10 years

yes/opt

yes/opt

yes/opt

CERTIFICATE AND APPROVALS

CE, VDE 0126-1-1, IEC 62109, G83-2, G59-3, AS4777, AS/NZS 3100, VDE-AR-N4105, EN50438, EN62116, CQC, MEA, PEA, IEC61683
